Developer Guide — Layouts and scale

Part of the Developer Guide.

Reticle overlays

A reticle (stepper field) is a rectangular group of dies that the lithography tool exposes in a single step. The reticle overlay draws the field boundaries on top of the wafer map and enables reticle-position analysis in the stats engine.

Adding a reticle overlay

const result = buildWaferMap({
  results,
  dieConfig:     { width: 10, height: 10 },
  reticleConfig: {
    width:  4,    // 4 dies wide per stepper field
    height: 2,    // 2 dies tall per stepper field
    // anchorDie: { x: 1, y: 0 }  // optional: pin a specific die (die.x/die.y) to a
                                    // field's min-x/min-y corner (bottom-left, since +Y is up)
  },
});

renderWaferMap(container, result);
// showReticle defaults to true when result.reticles is non-empty

The toolbar shows a Reticle toggle button whenever reticles is non-empty.

Once a reticleConfig is set, every die's hover tooltip also gains a Reticle (column, row) line directly below Die (x, y), showing that die's field-local position (0-indexed, relative to anchorDie) — independent of whether the reticle overlay is currently toggled on. This is on by default with no extra configuration.

Reticle analysis in the stats engine

When a reticleConfig was used, analyzeWaferMap automatically includes reticle-position comparisons (die's position within its stepper field vs. rest of reticle). This surfaces systematic problems from mask defects, focus variation, or lens aberrations:

const result  = buildWaferMap({ results, dieConfig, reticleConfig });
const summary = analyzeWaferMap(result);
// result.reticleConfig is passed through automatically

Spread the result directly — r.reticles is already part of WaferMapResult. The gallery enables the Reticle toggle button automatically when any item has reticles:

const items = waferResults.map(r => ({ ...r }));
// or with a label:
const items = waferResults.map((r, i) => ({ ...r, label: `W${i + 1}` }));
→ Demo: Reticle overlays

Reticle grid overlay active

Compact layout for multi-project wafers

On a multi-project wafer (MPW) each reticle holds only a few of one product's dies, so the wafer map is mostly empty and every die is a few pixels wide. The compact layout draws the dies on a grid with the empty columns and rows removed and each group of dies outlined, so the product fills the map.

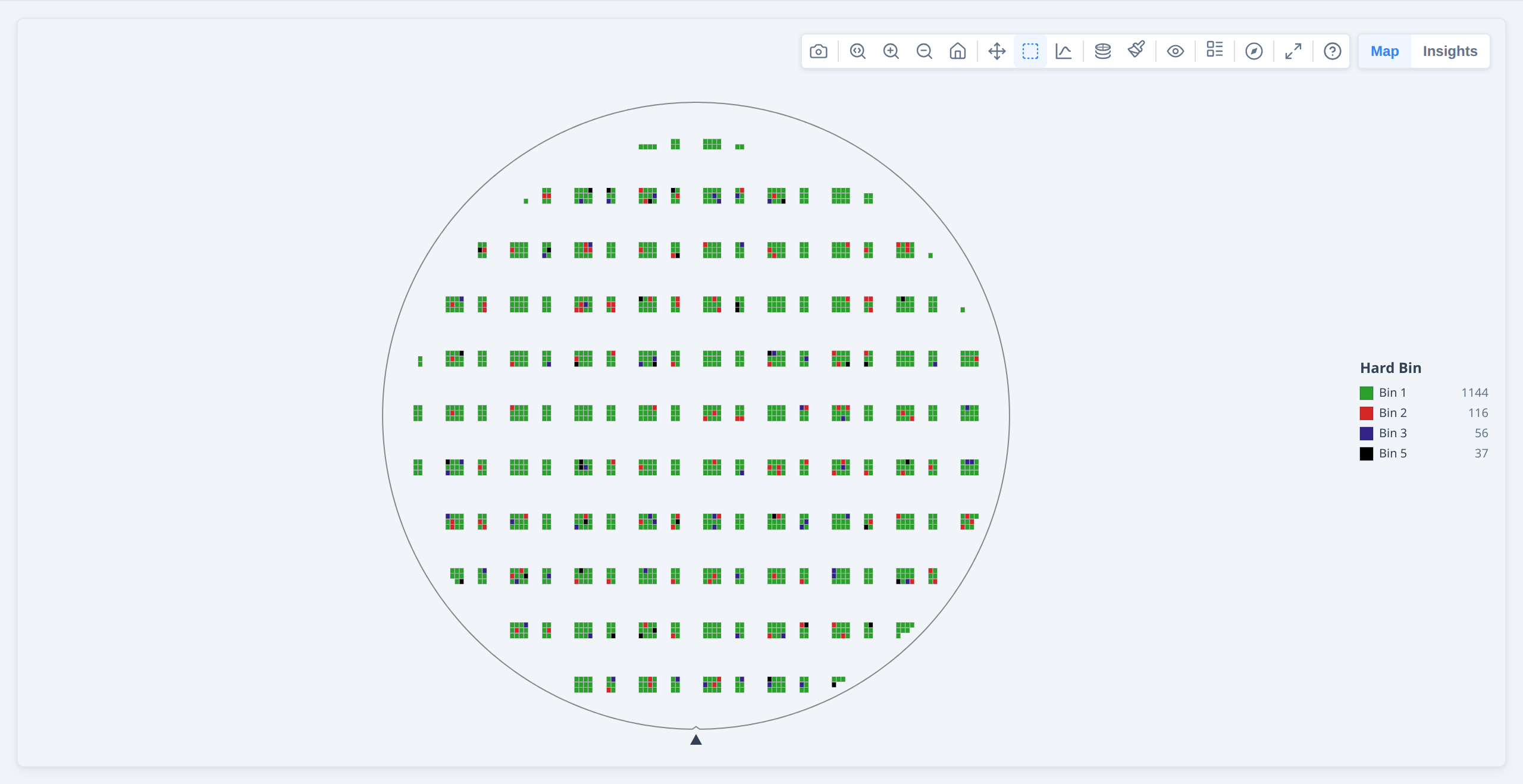

A multi-project wafer in the wafer view

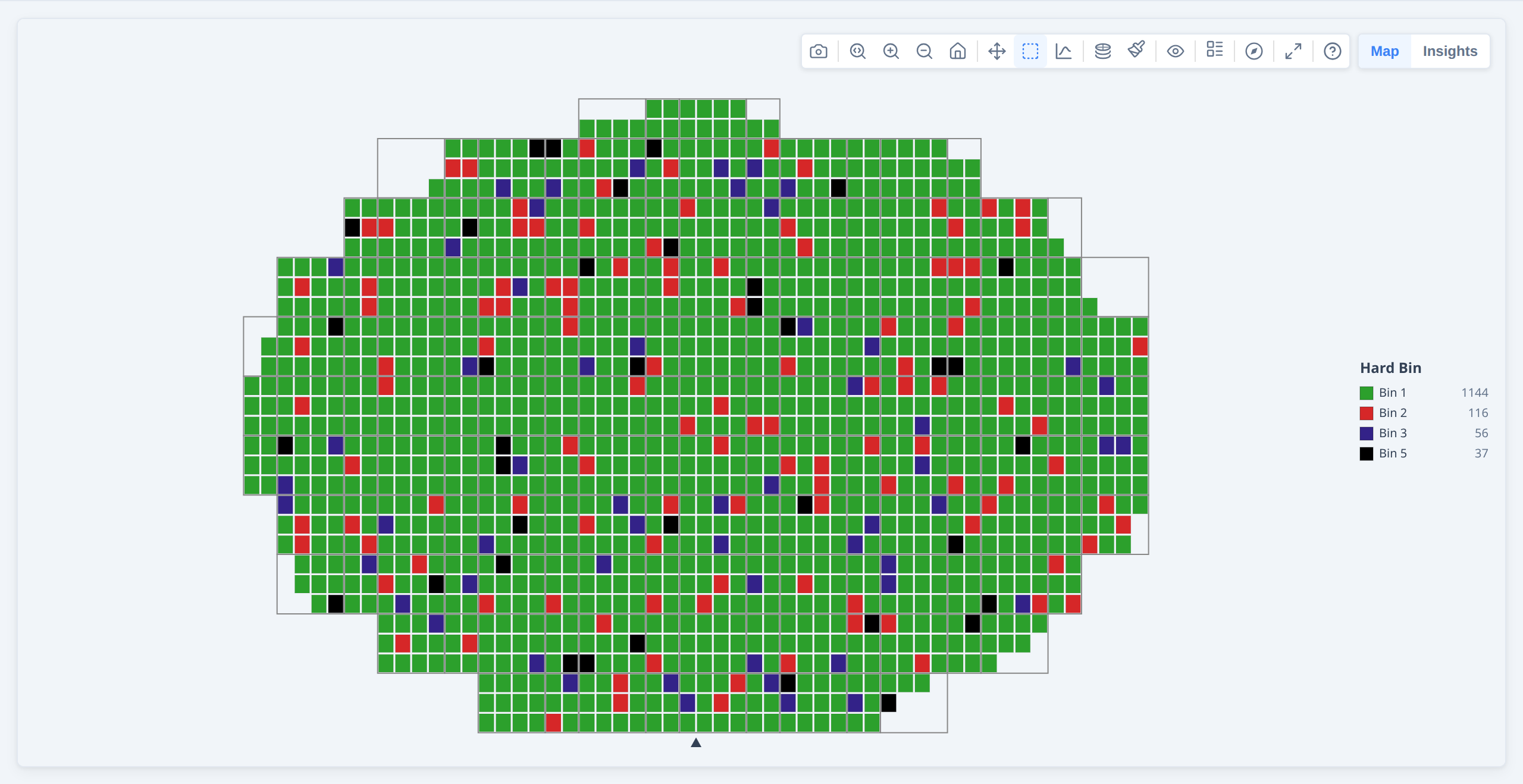

The same wafer in the compact layout

The same synthetic wafer: each reticle holds two small groups of dies, so the wafer view is mostly empty. The compact layout removes the empty rows and columns and outlines each group.

renderWaferMap(container, result, {
  viewOptions: { compact: true },
});
  • Only the layout changes. Every die is still drawn and counted, so the legend, yield and every statistic are the same as on the wafer view. Hover text and axis labels give original die.x/die.y.
  • When the toolbar offers it. The Overlays menu's Compact layout row is enabled when the occupied columns and rows repeat at a regular pitch (random missing dies do not repeat, so a wafer that merely has holes is not offered it). If you pass reticleConfig, the dies must repeat at its width and height or a multiple of it (a product on every second reticle repeats at twice the width). compact: true applies it regardless.
  • Wafer overlays. The wafer outline, ring, quadrant and reticle overlays describe the physical wafer and are not drawn in this layout. The notch marker and the XY indicator are, and follow rotation and flips.
  • Galleries. All cards share one layout built from every wafer shown, so wafers compare cell for cell, and a card is as tall as its map needs.
  • Axis labels. viewOptions: { showAxes: true } (the Overlays menu's Axis labels row) labels the first column or row of each group of dies, which marks the reticle boundaries.
  • Layout diagnostics. The same menu's Layout diagnostics row shows what the detector saw as counts and scores only (no die positions, bins, values or wafer names), with Copy and Save as file, so someone can report why a layout was or was not recognised without sharing their data.

See the multi-project wafer example.

Multi-site parallel testing

Modern probers test multiple dies simultaneously using a multi-site probe card. Each site on the card contacts a different die, and the tester records which site produced each result via the STDF site_num field. Supplying siteNum on each DieResult enables per-site analysis in the stats engine: the engine compares yield and bin distributions across sites, surfacing systematic probe card or prober alignment problems.

Supplying site numbers

Pass siteNum on each die result — it maps directly from the STDF site_num field:

const results = stdfRows.map(row => ({
  x:       row.x_coord,
  y:       row.y_coord,
  hbin:    row.hard_bin,
  siteNum: row.site_num,   // STDF site_num — which parallel site tested this die
}));

const result = buildWaferMap({ results, passBins: [1] });

Test-site analysis in the stats engine

analyzeWaferMap enables test-site analysis automatically when the data contains meaningful site duplication — at least two distinct siteNum values each appearing on three or more dies (the guard that distinguishes a 4-site probe card from a monotonically-incrementing counter):

const summary = analyzeWaferMap(result);
// test-site findings appear automatically when the guard passes

Findings compare each site against all other sites, using the same yield, hard-bin, soft-bin, and test-value analyses as spatial regions. A finding such as:

[unusual] Site 3 yield is 14.2 percentage points lower than other test sites

points directly to a probe card contact problem on that site.

Prober step identifier

The STDF pir.part_id field records the tester's identifier for each tested unit — at most fabs this encodes probe sequence (the order in which the prober stepped across the wafer). Supply it as partId to preserve it through the library for traceability or custom sequential analysis:

const results = stdfRows.map(row => ({
  x:      row.x_coord,
  y:      row.y_coord,
  hbin:   row.hard_bin,
  siteNum: row.site_num,
  partId:  row.part_id,   // STDF pir.part_id — 1-based tester step identifier
}));

partId is carried through to every Die and appears in hover tooltips alongside x, y, and bin assignments. The field is semantically neutral — its exact meaning is fab-specific — so the library stores it as-is without interpretation.

→ Demo: Multi-site parallel testing

Multi-site parallel testing — site yield comparison

Processing large datasets with a Web Worker

For lots with many wafers or high die counts, buildWaferMap can be moved off the main thread to avoid blocking the UI.

Use the worker for responsiveness, not speed. The worker runs the same code as the main thread, then pays extra to copy the input in and the built dies out across postMessage (the test values are moved, not copied). In total wall-clock time it is always slower than calling buildWaferMap directly — what you gain is that the page stays interactive instead of freezing during a big build. Results passed as columns (DieColumns) cross without freezing the page; rows are copied on the page, which still freezes it for part of the time. Only reach for it when a single synchronous build is large enough to cause a visible freeze (roughly tens of thousands of dies). Below a few thousand dies it just adds latency; build on the main thread. See §8 in the API reference for indicative timings and the crossover point.

Setup

import { createWafermapWorker } from '@wafertools/wafermap/worker';

// Vite / webpack — import the pre-built worker script
import workerUrl from '@wafertools/wafermap/worker-script?url';
const wmWorker = createWafermapWorker(new Worker(workerUrl, { type: 'module' }));

// Plain HTML / CDN
const wmWorker = createWafermapWorker(
  new Worker('https://cdn.jsdelivr.net/npm/@wafertools/wafermap/dist/packages/worker/wafermap.worker.js', { type: 'module' })
);

Create the worker once at app startup and reuse it for all calls.

Replacing buildWaferMap with worker.run

// Before:
const result = buildWaferMap({ results, waferConfig, dieConfig });

// After (same input/output, just async):
const result = await wmWorker.run({ results, waferConfig, dieConfig });

// Everything after is unchanged:
renderWaferMap(container, result);

Processing a lot in parallel

const waferResults = await Promise.all(
  waferIds.map(id => wmWorker.run({
    results:     dataByWafer[id],
    waferConfig: { diameter: 300 },
    dieConfig:   { width: 10, height: 10 },
  }))
);

If you also need the analysis summaries, use runWithAnalysis instead of run followed by runAnalysis — it builds and analyses in one round-trip so the large result objects are not cloned back into the worker just to be analysed:

const { results, waferSummaries, lotSummary } = await wmWorker.runWithAnalysis(
  waferIds.map(id => ({ results: dataByWafer[id], dieConfig: { width: 10, height: 10 }, passBins: [1] })),
  {},
  waferIds.length > 1,
);

Cleanup

// When the app or page unmounts:
wmWorker.terminate();

Note: renderWaferMap and renderWaferGallery require the DOM and must run on the main thread. analyzeWaferMap/analyzeWaferLot and buildWaferMap are pure functions with no DOM access — they can run in a Web Worker, Node.js, or any server-side environment.

→ Demo: Processing large datasets with a Web Worker

Die layouts with no test data

For a gross-die-per-wafer count, reticle or step planning, or the expected map before any data exists, build a layout instead of passing results:

const layout = buildWaferMap({
  layout: true,
  waferConfig: { diameter: 300, notch: { type: 'bottom' } },
  dieConfig:   { width: 10, height: 10 },
});

layout.dies.length;                 // gross die per wafer: every site lying fully on the wafer
renderWaferMap(container, layout);  // drawn like any other map, every die as no data

It needs the diameter and the die size. Orientation, edge exclusion and reticleConfig apply as they do to a map of results. See the API reference for the details.
